We offer a comprehensive range of screw production equipment—including cold heading, thread rolling, and assembly machines—alongside full-specification drilling tail screws, supported by ODM, OEM, and non-standard customization services.

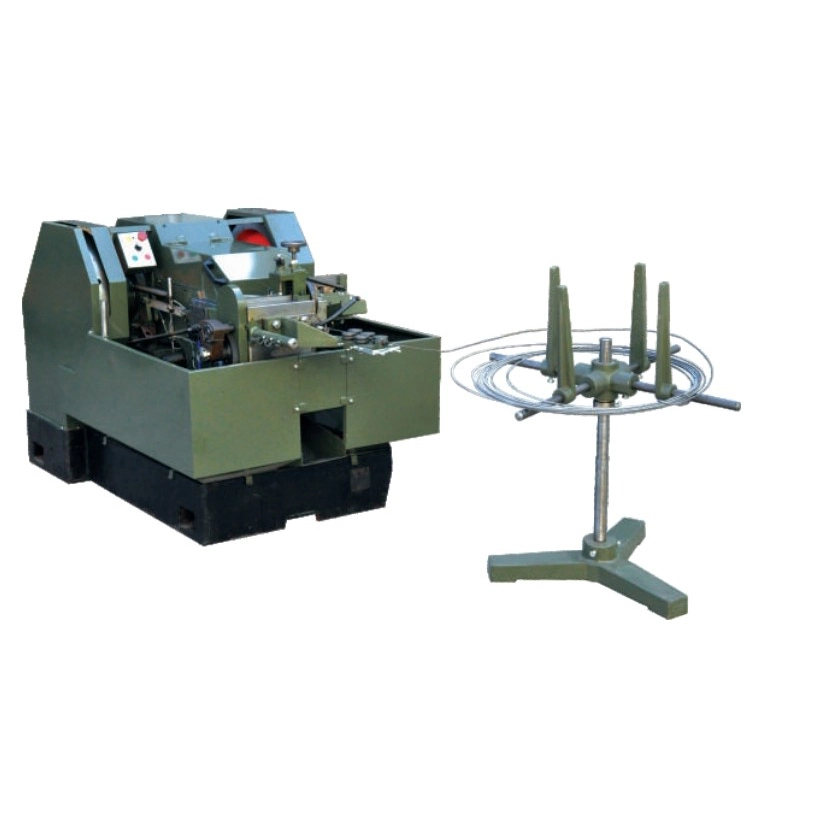

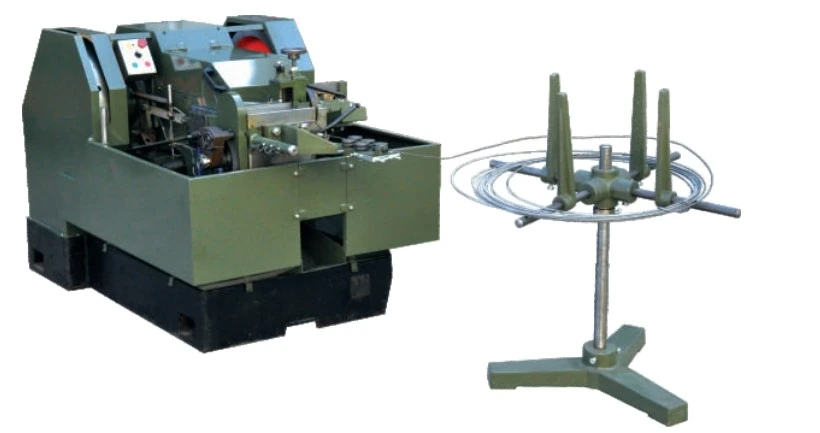

This small fastener cold heading machine integrates full-automatic wire feeding, precise straightening, fixed-length cutting, pre-forming processing and one-time precise cold heading shaping with automatic discharging.
The professional forming structure perfectly solves common industry pain points of traditional equipment, including large dimensional tolerance, micro crack defects, low finished product yield and complex operation in tiny fastener manufacturing.
As a reliable rivet and small screw making machine, it is widely adopted for batch production of various micro fasteners and has become the standard preferred equipment for professional fastener factories focusing on small screw and rivet manufacturing.
All parameters are calibrated for rivet and small screw manufacturing, fully adapting to micro fastener precision production
| Parameter Item | Technical Specification |
| Brand | YWC |
| Product Name | Cold Heading Machine for Rivet and Small Screw Manufacturing |
| Applicable Products | Solid rivet, hollow rivet, semi-hollow rivet, M1-M6 small screws, micro fasteners |
| Applicable Materials | Iron, Carbon Steel, Copper, Aluminum, Stainless Steel |
| Production Speed | 150-450 PCS/Min (adjustable according to product size) |
| Forming Precision | ±0.01mm, zero burr for micro fastener |
| Control System | YWC Intelligent PLC Automatic Control System |
| Working Mode | Full automatic feeding, cutting, heading, shaping and discharging |
| Core Feature | High precision for tiny parts, low material loss, easy operation |
Below is the standardized official operation instruction for the YWC Cold Heading Machine for Rivet and Small Screw Manufacturing. This complete operation guide covers pre-operation inspection, intelligent parameter debugging, formal production procedures, standardized shutdown processing and daily safety specifications, enabling users to achieve standardized, safe and high-efficiency micro fastener production with this automatic rivet forming machine.
Before starting the YWC cold heading machine for rivet and small screw production, complete comprehensive pre-operation inspection to effectively avoid equipment failure and defective micro fastener products:
Mechanical Inspection: Check whether the machine body bolts, dies, transmission parts and feeding wheels are loose or worn. Ensure the forming die for small screws and rivets is installed firmly without offset. Clean iron scraps and sundries inside the forming cavity to guarantee micro fastener forming accuracy.
Oil & Circuit Inspection: Check the lubricating oil and hydraulic oil volume to ensure sufficient oil supply. Inspect the circuit connection for safety and no virtual connection. Confirm the cooling system works normally to prevent overheating during high-speed continuous operation.
Material & Die Matching Check: Select matched dies according to the size of produced rivets and small screws. Confirm the raw material wire diameter matches the equipment specification, avoid using mismatched materials to prevent die damage and product deformation.
Equipment Level Inspection: Verify the machine is placed horizontally and fixed stably to prevent vibration deviation during high-speed cold heading, which affects the precision of tiny rivets and small screws.
Equipped with YWC intelligent PLC control system, this small screw manufacturing machine supports precise and flexible parameter adjustment, perfectly adapting to different sizes and material types of rivets and small screws:
Turn on the equipment power, enter the PLC control interface, and select the corresponding production mode: rivet forming mode or small screw forming mode.
Set production parameters including feeding length, cutting stroke, cold heading pressure and production speed according to product specifications. For micro rivets and ultra-small screws, appropriately reduce the operating speed to ensure precise forming.
After parameter setting, save the data. The system supports multi-group parameter memory, which can be called directly for repeated production of the same specification, greatly improving debugging efficiency.
Perform 3-5 times of no-load jogging debugging to confirm the equipment runs smoothly without jamming, abnormal noise or die collision.
Adhere to the following standardized operation steps for stable batch manufacturing of rivets and small screws with the YWC high precision cold heading equipment, ensuring consistent product precision and high production yield:
No-load Test Run: After debugging, start the no-load automatic operation mode, let the machine run stably for 5 minutes, observe the coordination of feeding, cutting and heading actions, and confirm no abnormal failure.
Sample Trial Production: Put in raw materials for trial production of 10-20 samples. Check the rivet head shape, screw head flatness, size tolerance and surface finish. Fine-tune parameters slightly if there is minor deviation until the samples fully meet the standard.
Official Mass Production: After the samples are qualified, start formal automatic batch production. The equipment will automatically complete wire straightening, fixed-length cutting, one-time cold heading forming and finished product discharging.
Real-Time Production Monitoring: During continuous production, regularly check the finished product quality every 10 minutes. Observe the equipment operating status to ensure stable feeding and accurate forming, avoid batch defective products.
Standard shutdown cleaning and daily maintenance are essential to stabilize the performance and extend the service life of the YWC Cold Heading Machine for Rivet and Small Screw Manufacturing, ensuring long-term stable precision of micro fastener forming:
Stop the feeding system first, continue the equipment idle running for 2-3 minutes to completely discharge the residual raw materials and scraps inside the machine.
Cut off the equipment power and air source, clean the forming die cavity, feeding channel and discharging port thoroughly to remove accumulated iron scraps, preventing die wear affecting next use precision.
Lubricate the transmission bearings, guide rails and moving parts to ensure flexible mechanical operation for the next production.
Arrange the production site, cover the equipment dust cover if it is shut down for a long time, and complete daily operation records.
Professional trained operators are required for equipment operation. It is forbidden for non-professionals to adjust parameters or disassemble the machine arbitrarily.
It is strictly prohibited to put hands or tools into the die working area during equipment operation to avoid mechanical safety accidents.
Do not overload the machine for a long time. Appropriately reduce the speed when producing ultra-small rivets and thin screws to ensure stable forming quality.
In case of material jamming, abnormal noise or equipment failure during production, press the emergency stop button immediately, cut off the power supply for troubleshooting, and forbidden forced startup.
Regularly check die wear degree every week, replace worn dies in time to ensure the dimensional accuracy of rivets and small screws.
Professional for Rivet & Small Screw Manufacturing: This YWC cold heading machine adopts exclusive micro-forming optimized design, specially customized for tiny fastener production. It effectively solves the precision instability, burr and crack defects of universal cold heading machines in processing miniature rivets and small screws, achieving professional targeted production.
Simple Operation & Low Training Threshold: The automatic rivet forming machine is equipped with intelligent one-key parameter setting, with preset professional production formulas for rivets and small screws. The humanized operation logic greatly reduces the operation threshold, allowing new workers to master skilled operation in a short time and save enterprise labor training costs.
Ultra-High Micro Forming Precision: Matched with high-precision customized die set and stable synchronous transmission system, this small fastener cold heading machine ensures zero burr, zero deformation and consistent dimensional uniformity for micro rivets and small screws. The qualified rate of finished products stably reaches 99.7%, meeting high-standard precision manufacturing requirements.
Stable 24H Continuous Operation: Optimized anti-jamming feeding and straightening structure is adopted for this small screw manufacturing machine, which can adapt to long-term uninterrupted batch production of micro fasteners. It features extremely low failure rate and continuous high production efficiency, suitable for high-intensity factory industrial production scenarios.
Multi-Material Universal Compatibility: This YWC cold heading machine supports cold forming of various metal materials including iron, carbon steel, copper, aluminum and stainless steel. It can freely switch between different material production, fully meeting diversified manufacturing demands of various rivets and small screws.
Low Maintenance & High Cost Performance: Adopting modular disassembled structural design, the high precision cold heading equipment is convenient for daily cleaning, die replacement and routine maintenance. Core components have long service life, effectively reducing daily maintenance costs and overall operating costs for fastener factories.
The YWC cold heading machine for rivet and small screw manufacturing has ultra-wide production applicability, covering mass production of multiple micro fastener products: solid rivets, hollow rivets, semi-tubular rivets, copper rivets, aluminum rivets, M1-M6 miniature self-tapping screws, electronic precision small screws and micro hardware fasteners.
This professional rivet and small screw making machine is widely used in electronic hardware, electrical accessories, toy hardware, precision machinery and professional small fastener processing factories.
