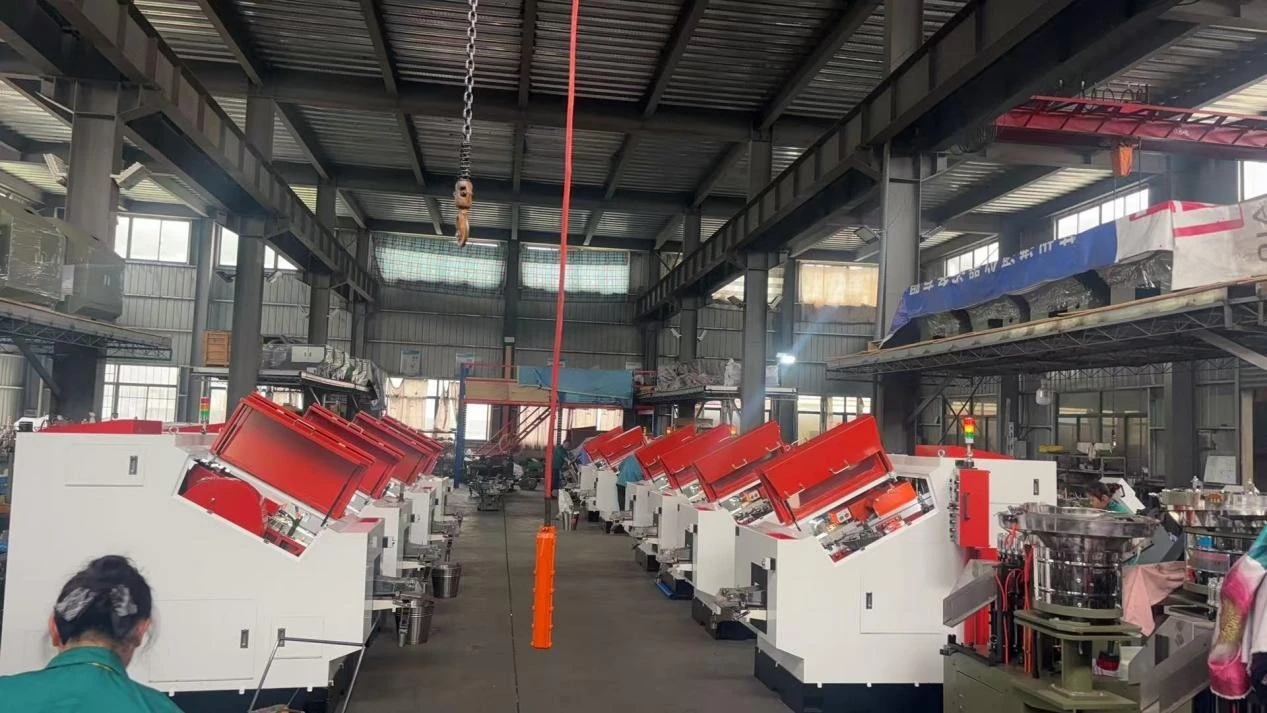

High Speed Automatic Screw Header Machine for Mass Production

As a high-performance mass production screw header machine, it effectively solves prominent process defects in traditional screw production, including scattered working procedures, repeated positioning errors, low hourly output and unstable forming precision. The fully streamlined automatic forming process enables uninterrupted high-speed operation, greatly boosting factory production capacity and product standardization level.

This High Speed Automatic Screw Header Machine for Mass Production adapts to mass processing of various standard screws and ordinary industrial fasteners, supporting long-term high-intensity industrial continuous production with stable performance.

Complete Screw Forming Process Introduction

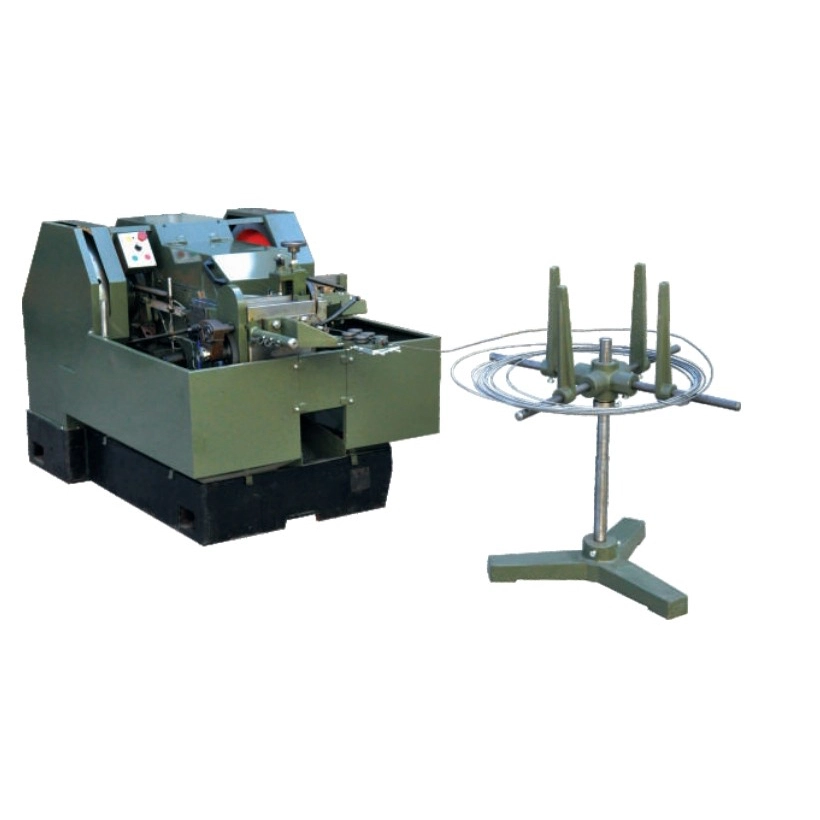

The YWC high speed automatic screw header machine adopts a fully automated closed-loop cold heading process, integrating wire straightening, fixed-length precision cutting, multi-stage pre-forming, high-speed precise heading, shaping and automatic intelligent discharging.

The entire manufacturing process requires zero manual intervention, realizing standardized, streamlined and efficient production. Every process link is precisely synchronized by the exclusive YWC high-speed PLC intelligent system, which is the core advantage that makes this high speed fastener heading equipment stand out in ultra-high-efficiency fastener mass production.

1. Automatic Wire Straightening & Feeding Process

Wire straightening and automatic feeding is the foundational core process of stable screw mass production. This full auto screw header machine is equipped with multi-group precision roller straightening structure, which automatically corrects bending, twisting and deformation of raw metal wires.

The intelligent constant-speed feeding system accurately controls wire feeding length and tension, completely avoiding uneven feeding and position deviation caused by manual operation. This standardized pre-processing procedure builds a consistent and stable foundation for subsequent screw heading forming, eliminates defective products induced by irregular raw materials, and significantly improves the overall process stability of the High Speed Automatic Screw Header Machine for Mass Production.

2. Fixed-Length Precision Cutting Process

After automatic straightening and feeding, the equipment executes high-precision fixed-length cutting process to ensure uniform screw blank specifications. Different from traditional mechanical cutting with large tolerance errors, the YWC automatic screw forming machine adopts synchronous servo cutting technology, strictly controlling cutting length tolerance within ±0.01mm.

Unified standard screw blanks effectively prevent subsequent heading deformation and size deviation caused by inconsistent blank length. This high-precision cutting process guarantees excellent batch consistency of finished screws, fully meeting the strict standard requirements of large-scale mass production for fastener factories.

3. Multi-Stage Pre-Forming Buffering Process

To thoroughly solve common defects such as screw head cracking and uneven forming in high-speed continuous production, this mass production screw header machine is upgraded with an exclusive multi-stage pre-forming buffering process. Traditional heading equipment completes forming in one single stroke, resulting in excessive instantaneous pressure, unbalanced metal flow and easy blank deformation.

The optimized YWC process disperses forming pressure through multiple pre-pressing and fine shaping procedures, evens out the metal grain structure of screw blanks, relieves internal processing stress, and significantly enhances the toughness and forming integrity of screw heads. This advanced process effectively reduces the defective rate of high-speed fastener production and improves product qualification rate.

4. High-Speed Precision Heading & Shaping Process

As the core procedure of the whole production line, the high-speed synchronous heading and shaping process directly determines finished screw quality and production efficiency. The YWC High Speed Automatic Screw Header Machine for Mass Production adopts integrated high-rigidity die forming technology, completing screw head stamping, rounding and edge trimming in one integrated process.

Equipped with high-hardness anti-wear die sets, it achieves smooth, burr-free and precise fastener forming. The stable synchronous transmission system maintains constant heading speed and pressure during long-term high-load operation, enabling perfect shaping of various standard screw heads with full outline and uniform size, fully complying with international fastener standards and making it reliable precision screw cold heading process equipment.

5. Automatic Screening & Discharging Process

Automatic screening and discharging is the final intelligent link of standardized mass production. This professional high speed fastener heading equipment is fitted with an integrated discharging and impurity removal system, which automatically identifies, screens and eliminates deformed, cracked and unqualified defective screws generated during operation, ensuring only qualified finished fasteners are output uniformly.

The whole process runs continuously without interruption, effectively avoiding material accumulation and process stagnation. It realizes seamless full-cycle connection from raw material input to finished product output, maximizing the mass production efficiency of the full auto screw header machine.

Core Process Advantages of YWC Screw Header Machine

Integrated Streamlined Process, Ultra-High Production Efficiency: The one-piece continuous forming process replaces fragmented traditional working procedures, delivering 3-4 times higher production efficiency than ordinary heading machines. This full auto screw header machine supports 24-hour non-stop uninterrupted mass production, effectively improving overall output capacity for medium and large-scale fastener factories.

Standardized Process: The entire production process adopts intelligent unified parameter control with fixed professional process standards, eliminating manual operation errors. All finished screws maintain consistent size, head shape and appearance, completely solving the problem of uneven product quality in traditional manual and semi-automatic production, a core advantage of this industrial screw mass production machine.

Optimized Stress Relief Process: The exclusive multi-stage pre-forming stress relief process effectively balances metal internal stress, thoroughly avoiding screw head cracking, surface burrs and forming deformation in high-speed operation. The stable product qualification rate reaches up to 99.8%, greatly reducing process waste, rework costs and production losses for fastener manufacturers.

Low Loss Energy-Saving Process: The optimized synchronous operation process reduces invalid mechanical friction and power consumption, realizing low energy consumption and low loss production. The material utilization rate reaches 98%, maximizing raw material utilization and improving enterprise economic benefits.

Universal Process: The mature YWC screw cold forming process perfectly adapts to M2-M20 carbon steel and iron standard screws, self-tapping screws and industrial bolts, supporting free and fast switching of multiple specifications. One set of High Speed Automatic Screw Header Machine for Mass Production meets diversified mass production demands, saving equipment investment and workshop space for fastener enterprises.
