We offer a comprehensive range of screw production equipment—including cold heading, thread rolling, and assembly machines—alongside full-specification drilling tail screws, supported by ODM, OEM, and non-standard customization services.

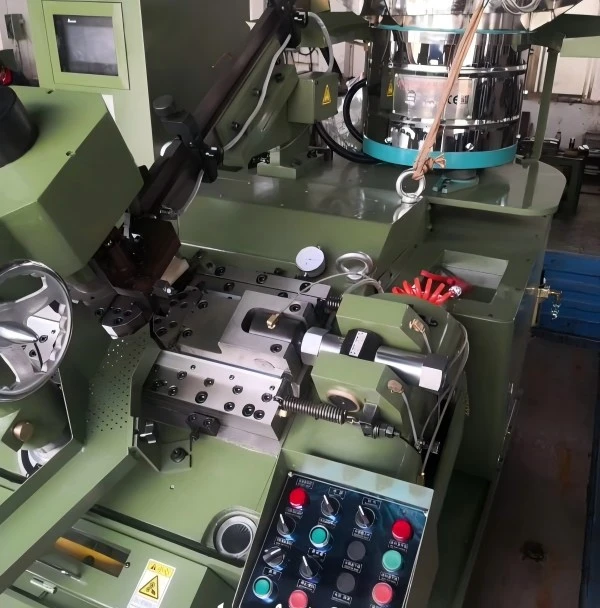

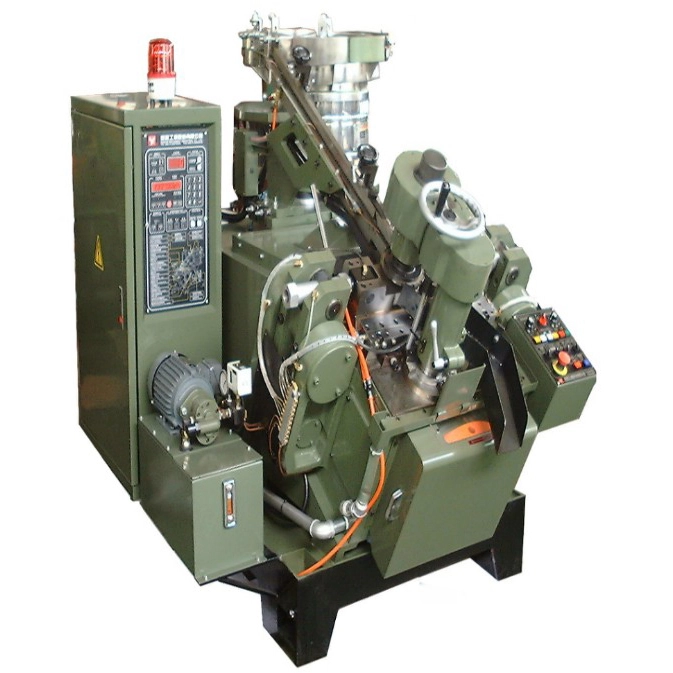

Drill Point Forming Machine for Self Drilling Screws is a professional dedicated processing equipment specially developed for mass industrial production of self-drilling screw drill tips.
As the core essential equipment in a complete self-drilling screw production line, this fully automatic self drilling screw point forming machine effectively solves core manufacturing pain points for global fastener manufacturers, including irregular drill tip geometry, residual drill point burrs, inconsistent drill point angles, low finished product yield, and unstable batch quality of finished self-drilling screws.
Unlike ordinary low-precision screw processing equipment, our industrial-grade self drilling screw tip shaping machine adopts high-precision cam indexing positioning technology and one-time cold extrusion forming craft.
This intelligent Drill Point Forming Machine realizes fully automatic production procedures including vibrating feeding, precise workpiece positioning, precision drill point trimming, standard drill angle calibration, cutting edge finishing and qualified product discharging.
Widely used for processing standard self-drilling screws for construction fastening, metal sheet installation, electrical hardware and automotive fastener applications, this self drilling screw drill point forming equipment is the best supporting machine for fastener factories to improve screw drilling performance and reduce defective rates.
This section focuses on the core purchasing concerns of screw factory owners, production supervisors and international equipment buyers who seek reliable Drill Point Forming Machine for Self Drilling Screws. We prioritize high product pass rate, stable continuous operation, low labor consumption, simple parameter adjustment, wear-resistant mechanical parts and low long-term maintenance cost for all self-drilling screw tip forming production.
Solve Low Pass Rate Problem: Positioning tolerance up to ±0.01mm, uniform drill point angle, no burrs, effectively improve finished screw qualification rate to over 99%
Solve Unstable Batch Quality: Fixed cam indexing positioning + alloy fixed mold, consistent processing standard for each screw, zero batch difference
Solve High Labor Cost: Full automatic feeding, forming and discharging, 1 worker can manage multiple machines, greatly save manual sorting and trimming labor
Solve Difficult Parameter Adjustment: Intelligent touch screen one-key adjustment, support parameter memory, fast specification switching
Solve Frequent Failures & Short Service Life: Thickened fuselage + high-hardness alloy cutter head, wear-resistant and impact-resistant, long-term continuous operation available
Solve Post-Sales Worries: Standardized after-sales system, on-site commissioning + long-term technical support
This professional Drill Point Forming Machine for Self Drilling Screws adopts an integrated modular structural design. Every independent functional module is professionally optimized for long-term, high-stability self drilling screw drill point forming operations, effectively lowering overall equipment failure rate, improving drill point forming consistency and maximizing mass production efficiency for self-drilling screw manufacturing lines.
Equipped with a dedicated vibrating feeding tray customized for self-drilling screw blanks, this self drilling screw point forming machine supports automatic sorting, arranging and continuous feeding without material stacking or missing feeding.
The feeding speed synchronizes intelligently with drill point forming speed, realizing non-stop automatic production and eliminating frequent production shutdowns caused by manual feeding operations.
Serving as the core precision guarantee module of the Drill Point Forming Machine, the high-precision cam indexing positioning mechanism ensures stable and accurate fixation of each screw blank.
It completely avoids workpiece offset and angle deflection during high-speed drill point forming processing, ensuring zero error in drill point angle and symmetrical trimming for every finished self-drilling screw.
The core forming cutter head of this self drilling screw tip shaping machine is forged from imported high-speed alloy steel, featuring extreme hardness, strong wear resistance and high-temperature resistance.
It completes one-time cold extrusion forming and precision fine edge trimming for self-drilling screw drill points, thoroughly removing tail burrs, smoothing cutting edges and forming standard sharp drill points. Self-drilling screws processed by this professional drill point forming machine deliver fast drilling speed, no tip cracking and superior penetration performance in actual installation.
This Drill Point Forming Machine for Self Drilling Screws is equipped with a user-friendly intelligent touch screen control interface, supporting free adjustment of production speed, drill point angle and trimming depth according to different screw standards.
The built-in parameter memory function avoids repeated parameter resetting during specification replacement, greatly improving production flexibility and shortening equipment debugging time for self-drilling screw mass production.
To ensure safe and stable long-term operation, this self drilling screw drill point forming machine integrates a multi-functional safety protection system, including material shortage alarm, material jamming protection, overload automatic shutdown and real-time fault code display.
It effectively protects the machine fuselage and precision forming cutter head, reduces equipment loss and guarantees stable qualified drill point forming quality throughout continuous production.
Built-in automatic dust cleaning fan and centralized chip collection box, the Drill Point Forming Machine automatically cleans metal debris generated during high-speed drill point processing.
It keeps the working chamber clean at all times, prevents residual metal chips from affecting drill point forming precision, and greatly reduces daily manual cleaning workload for production workers.
Our fully automatic self drilling screw point shaping machine features ultra-simple operational logic and ultra-low worker skill threshold. The entire self-drilling screw drill point forming process is fully automated, allowing fast formal mass production startup for fastener factories with minimal staff training cost and time investment.
Check machine bolts, cutter head and fixtures to ensure firm installation and no damage
Check lubricating oil level to ensure sufficient lubrication for transmission and forming parts
Put qualified self-drilling screw blanks into the vibrating feeding tray
Set corresponding drill point angle and production parameters on the touch screen
Perform 3-5 minutes no-load test run to confirm smooth machine operation without abnormal noise
Produce 10-20 trial products, inspect drill point smoothness and angle precision, fine-tune parameters
After trial products pass inspection, switch to automatic continuous production mode
Regularly sample inspection during operation to ensure stable product quality
Normal Shutdown: Stop feeding first, finish residual workpiece processing, then cut off power and clean machine chips
Emergency Shutdown: Press emergency stop button immediately in case of material jamming or equipment abnormality to avoid equipment damage
Clean surface iron filings and dust of the Drill Point Forming Machine for Self Drilling Screws; regularly inspect alloy cutter head wear condition; replenish lubricating oil timely for transmission and forming components; ensure smooth operation of the automatic feeding system to guarantee stable drill point forming quality.
Fasten all loose connecting bolts; clean lubricating oil circuits and chip removal devices of the self drilling screw drill point forming machine; calibrate cam indexing positioning precision strictly; test the sensitivity of the fault alarm system to ensure zero error drill point processing.
Replace circulating lubricating oil completely; inspect and replace severely worn alloy forming cutter heads; conduct full-scale precision calibration for the Drill Point Forming Machine; check circuit and gas pipeline aging conditions to extend machine service life.
Ultra-High Forming Precision: This Drill Point Forming Machine achieves ultra-small forming tolerance of ±0.01mm, delivering standard drill point angle and smooth burr-free cutting edges, effectively improving self-drilling screw drilling performance and overall product added value.
Stable Mass Production Capacity: The self drilling screw point forming machine supports stable high-speed output of 120-450 PCS/min, allowing 24-hour uninterrupted industrial mass production with ultra-low failure rate, perfectly meeting large-order manufacturing demands.
Strong Specification Compatibility: Fully covers 2.8mm-8mm mainstream self-drilling screw specifications, supports fast parameter switching. This versatile Drill Point Forming Machine for Self Drilling Screws easily meets multi-specification customized production requirements.
Super Cost-Performance: Adopts high-wear alloy core forming parts for long service life. The self drilling screw drill point forming machine features low long-term maintenance and part replacement costs, effectively reducing overall production costs for fastener factories.
Labor-Saving & Efficient: Full automatic one-key operation design for the Drill Point Forming Machine, extremely low operation threshold, effectively reducing manual dependence and greatly improving factory daily production output.
