We offer a comprehensive range of screw production equipment—including cold heading, thread rolling, and assembly machines—alongside full-specification drilling tail screws, supported by ODM, OEM, and non-standard customization services.

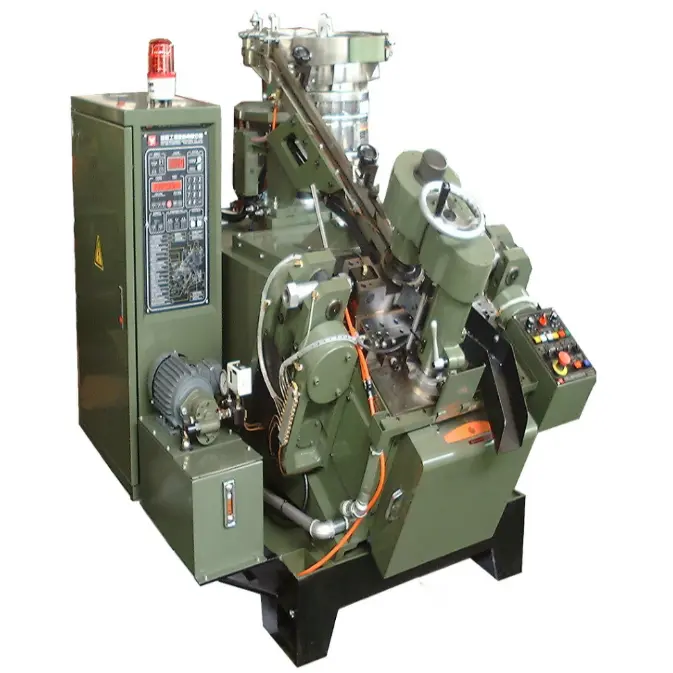

Drill point quality directly determines self-drilling screw field performance---affecting drilling speed, substrate penetration, bit breakage rate, and final fastening integrity, with substandard drill points typically resulting in 8--15% on-site rejection rates and increased warranty claims from end users. Our Self Drilling Screw Forming Machine addresses these quality determinants through ±0.01mm cam-indexed positioning that ensures standard 60°/75°/90° drill angles with zero burr and zero angular deviation, sustaining 99%+ finished product qualification rate across the full 2.8mm--8mm diameter and 10mm--200mm length range while delivering 120--450 PCS/min continuous output with single-operator supervision that reduces direct labor input by over 60%.
In the mass production of self-drilling screws, fastener manufacturers always face typical production bottlenecks: unqualified drill point angles, residual burrs, inconsistent batch precision, low manual trimming efficiency, high defective rate and rising labor costs. To solve these industrial pain points thoroughly, our Self Drilling Screw Forming making Machine provides a one-stop professional drill point forming solution for self-drilling screw production lines. This fully automatic self drilling screw point forming machine replaces traditional manual trimming and low-precision ordinary equipment, realizing standardized, high-precision and high-yield drill point processing, completely solving quality instability and low efficiency problems in self-drilling screw tail forming production.
As the core supporting solution for self-drilling screw finished product upgrading, this self drilling screw tip shaping machine integrates automatic feeding, precision positioning, cold extrusion forming, edge finishing and intelligent monitoring. It is a dedicated industrial solution for construction screws, metal fastener screws and automotive self-drilling screws, helping manufacturers reduce defective rate, cut production costs and improve core product competitiveness.
Our Self Drilling Screw Forming making Machine adopts targeted structural design and intelligent technology, providing precise solutions aiming at six major production pain points of screw factories:
Pain Point: Traditional processing leads to irregular drill points, asymmetric angles and residual burrs, resulting in unqualified screw drilling performance and high defective rate.
Our Solution: This self drilling screw drill point forming machine adopts ±0.01mm high-precision cam indexing positioning + alloy one-time cold extrusion forming technology. It realizes uniform trimming and smooth edge finishing for each self-drilling screw drill point, ensuring standard 60°/75°/90° drill angle, zero burr and zero deviation. The finished product qualification rate is stably over 99%, completely solving quality unqualified problems.
Pain Point: Manual trimming and ordinary equipment processing have large batch errors, unstable product quality, unable to meet high-standard customer order requirements.
Our Solution: Adopt fixed mold positioning and synchronous forming technology. All processing parameters of the Self Drilling Screw Forming making Machine are intelligently locked, with unified processing standards for each batch of workpieces. Zero batch difference is realized in mass production, ensuring stable and consistent drill point quality of exported high-standard self-drilling screws.
Pain Point: Manual sorting and trimming require a large number of workers, with slow speed and high labor cost, restricting factory output expansion.
Our Solution: Full automatic one-stop production design. The automatic self drilling screw point shaping machine completes automatic feeding, sorting, forming and discharging independently. A single worker can manage multiple devices, realizing unmanned continuous production. The production speed reaches 120-450 PCS/min, greatly improving production efficiency and reducing manual labor costs by more than 60%.
Pain Point: Traditional equipment has complicated parameter adjustment, long debugging time and difficult specification switching, unable to adapt to multi-specification customized orders.
Our Solution: Equipped with intelligent touch screen memory system. The Self Drilling Screw Forming making Machine supports one-key switching of screw specifications from 2.8mm to 8mm. Customized drill point angle parameters can be saved permanently, realizing fast debugging and flexible production of diversified orders.
Pain Point: Ordinary forming machines have vulnerable parts, easy jamming, frequent failures and high later maintenance costs, affecting production progress.
Our Solution: Thickened integral fuselage + imported high-hardness alloy cutter head, wear-resistant and impact-resistant. Equipped with material jamming protection, overload shutdown and automatic chip removal system. The failure rate is extremely low during long-term 24-hour operation, reducing later maintenance and replacement costs for factories.
Pain Point: Rough drill point edge and non-standard angle lead to slow screw drilling, easy tip cracking and poor installation effect, affecting product market competitiveness.
Our Solution: One-time cold extrusion fine trimming process forms sharp and smooth drill points. Self-drilling screws processed by this self drilling screw tip shaping machine feature fast drilling speed, strong penetration and no tip cracking during installation, effectively improving product grade and market competitiveness.
This Self Drilling Screw Forming making Machine provides standardized and customized forming solutions for full-range self-drilling screw specifications, with stable industrial-grade parameters:
| Parameter Item | Technical Specification |
| Applicable Screw Diameter | 2.8mm - 5.45mm (6# - 14#) |
| Applicable Screw Length | 10mm - 200mm |
| Solution Production Speed | 120 - 450 PCS/Min (Stepless Adjustable) |
| Forming Precision Tolerance | ±0.01mm (High Precision Solution Standard) |
| Customizable Drill Point Angle | 60° / 75° / 90° / Custom Special Angle |
| Working Voltage | 220V/380V 50Hz |
The complete self drilling screw drill point forming solution consists of six core modular systems, realizing full-process closed-loop quality control from feeding to finished product output:
Customized vibrating feeding tray for self-drilling screw blanks, realizing automatic sorting, arrangement and continuous feeding. It solves material stacking, missing feeding and intermittent production shutdown problems, ensuring stable and continuous material supply for drill point forming production.
The core precision module of the Self Drilling Screw Forming making Machine. High-precision cam indexing technology fixes each workpiece accurately, eliminating workpiece offset and angle deflection during high-speed operation, and providing zero-error positioning guarantee for standard drill point forming.
Imported high-hardness alloy cutter head is adopted to complete one-time cold extrusion forming and fine edge trimming of screw drill points. It thoroughly removes burrs, smooths cutting edges and standardizes drill angles, solving the fundamental problem of unqualified drill point quality.
Touch screen intelligent control with parameter memory function. It supports fast switching of different screw specifications and customized drill point angles, solving the problem of difficult debugging and low production flexibility of traditional equipment, and adapting to diversified order production needs.
Integrated material shortage alarm, material jamming protection, overload automatic shutdown and fault code display functions. It effectively avoids equipment damage and production failure, ensuring long-term stable and safe operation of the self drilling screw point forming machine.
Built-in dust cleaning fan and centralized chip collection box, automatically cleaning processing debris. It solves the problem of precision deviation caused by residual iron chips, keeps the equipment working area clean and reduces daily manual maintenance workload.
This professional Self Drilling Screw Forming making Machine forming solution is widely applicable to mass production and precision processing of various self-drilling screws, covering multiple industries:
Construction fastener self-drilling screws, color steel tile special drill tail screws
Metal plate installation self-drilling screws, hardware fastening screws
Electrical equipment precision self-drilling screws, automotive industry special fastener screws
Customized special-angle self-drilling screw precision forming processing
Quality Upgrade Value: Solve drill point quality defects fundamentally, increase finished product qualification rate to 99%+, improve screw drilling performance and product added value
Cost Saving Value: Full automatic production reduces labor input, low failure rate and low maintenance cost, greatly reducing factory comprehensive production cost
Efficiency Improvement Value: High-speed stable output supports 24-hour uninterrupted production, effectively expanding factory daily output and meeting large-order delivery requirements
Stable Batch Value: Intelligent parameter locking and precise positioning ensure zero batch difference of products, helping factories pass high-standard customer inspection and expand high-end orders
Flexible Custom Value: Support multi-specification and multi-angle customized forming, adapting to diversified market order demands and improving factory market competitiveness
We provide complete set of operation and maintenance supporting solutions for the Self Drilling Screw Forming making Machine, reducing customer use cost and failure risk:
Intelligent one-key operation, ultra-low worker skill threshold. Complete machine debugging, formal production and specification switching can be completed quickly, with professional English operation manual and free technical training provided.
Form standardized daily, weekly and monthly maintenance guidelines, including chip cleaning, oil replenishment, precision calibration and wearing parts inspection, effectively extending equipment service life and maintaining long-term stable forming precision.
Built-in common fault self-diagnosis system, matched with professional fault solution manual. Support 24-hour online technical support, quickly solve material jamming, burr generation, precision deviation and other common problems.
